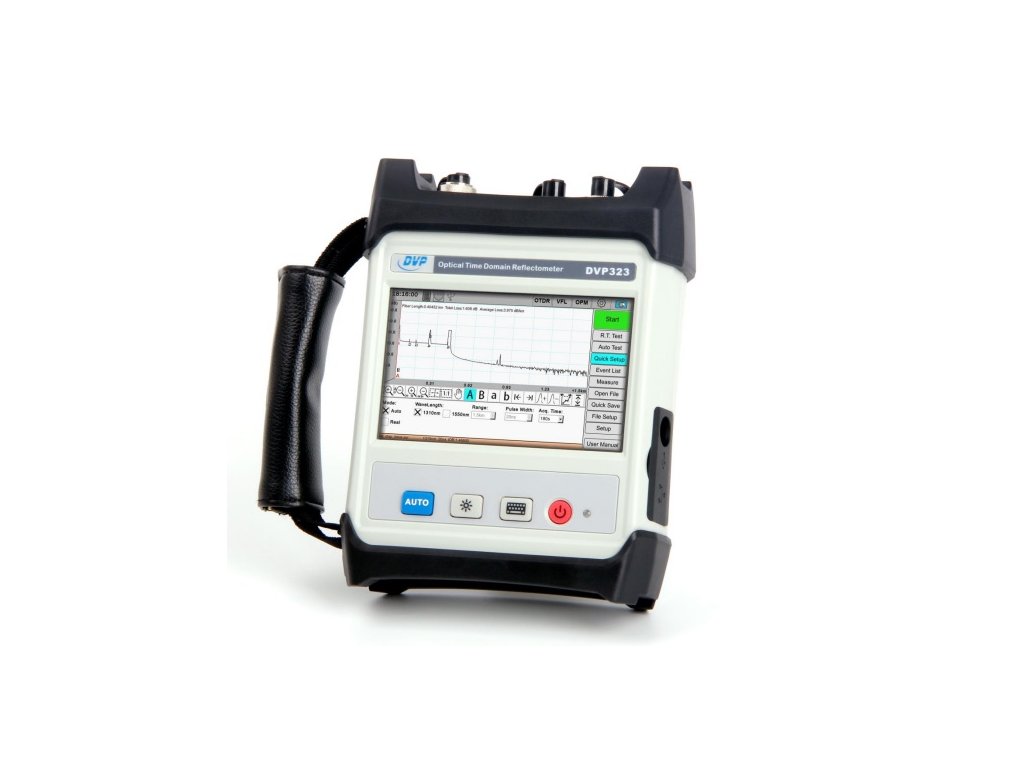

OTDR
Kód: 84Detailní popis produktu
Funkce:
5 inch touch screen, 800×480 high dot array resolution
Compact structure design, lighter, thinner and smaller
Exceptional short distance performance; minimum 0.8m event dead zone; minimum 4m attenuation dead zone
Support 28dB to 36dB dynamic range of various application demands
Convenient and fast UE design
Support OPM and VFL
Complete data interfaces such as LAN, USB and so on
Specifikace:
Wavelength(nm) |
Dynamic Range(dB) |
Event Dead Zone (m) |
Attenuation Dead Zone (m) |
||
1310±20/1550±20 |
34/32 |
<3m |
<25m |
||
Distance range(Km) |
5m-160km |
||||
Pulse width(ns) |
5ns~20μs(5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs) |
||||
Measurement time |
user-defined(smart link),with real-time measurement function |
||||
Distance accuracy(m) |
±(1m +0.001%×range + sampling resolution) |
||||
Attenuation accuracy |
±0.05dB/dB |
||||
Loss limit(dB) |
0.01dB |
||||
Loss resolution(dB) |
0.001dB |
||||
Sampling resolution(m) |
0.1m |
||||
Sampling points |
128000 |
||||
Data storage |
3000 items |
||||
LCD type |
5 inch TFT colorized LCD |
Laser adapter |
FC/PC, SC/PC(option) |
Interface |
USB |
Battery |
built-in rechargeable Li-ion battery charging time <4 hours working time >8 hours |
Power |
AC input : 100~240V , 600mA , 50/60Hz DC output : 12.0V , 2A |
Operating temperature |
0℃~40℃ |
storage temperature |
-20℃~70℃ |
relative humidity |
<80% |
weight |
<1kg |
dimensions (mm) |
200*126*62mm |
Doplňkové parametry
Kategorie: | Nářadí |
---|---|
Záruka: | 24 měsíců |
